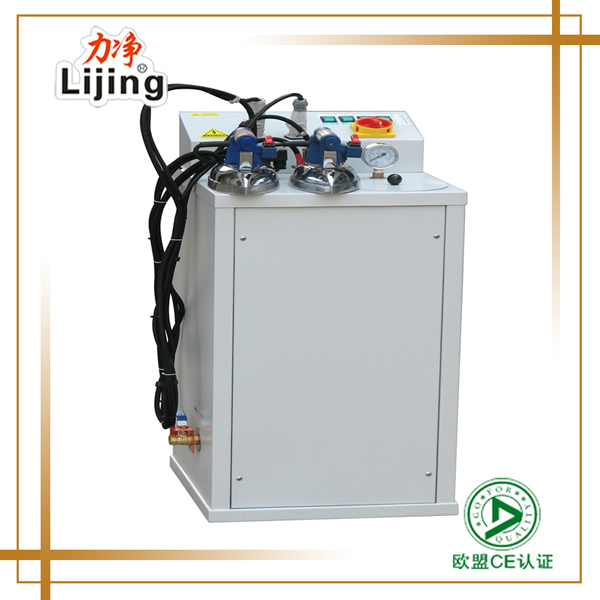

The aircraft is continuously generate pressure steam miniature boilers provide steam for the steam iron equipment, ironing finishing and garment industry to improve quality, is the ideal equipment to improve product quality.
| 型号 Model | DZFB3 | DZF6 | DZF9 | DZF12 | DZF18 | DZF24 | BON36 |
|
加热功率 Heating power |
3KW | 2+4=6KW | 3+6=9KW | 6+6=12KW | 9+9=18KW | 12+12=24KW | 18+18=36KW |
| 电压 Voltage | 220V | 220V/380V | 220V/380V | 220V/380V | 380V | 380V | 380V |
|
额定蒸汽压力： Rated steam pressure |
0.4Mpa | 0.4~0.7Mpa | 0.4~0.7Mpa | 0.4~0.7Mpa | 0.4~0.7Mpa | 0.4~0.7Mpa | 0.4~0.7Mpa |
|
额定蒸发量： Rated evaporation |
4.3kg/h | 8.6kg/h | 12.9kg/h | 18kg/h | 25.8kg/h | 34.4kg/h | 51.6kg/h |
|
有效水容积： Effective water volume |
18L | 18L | 28L | 38L | 48L | 48L | 48L |
| 包装尺寸：Packing dimension(mm) | 560×370×810 | 620×360×780 | 630×560×1360 | 550×700×1200 | 820×750×1420 | 820×750×1420 | 1040×640×1360 |
| 重量：Weight(kg0 | 30 | 45 | 80 | 100 | 124 | 124 | 163 |
| 自动化：Automation |
半自动,手加水 Semi-automatic, manual add water |
全自动 fully automatic |
全自动 fully automatic |
全自动 fully automatic |
全自动 fully automatic |
全自动 fully automatic |
全自动 fully automatic |
|
 |
 |
 |
 |
|
|
|
